E. L. Moore’s Legacy in the 21st Century: Grizzly Flats and The N-scale Affair

E.L. Moore published almost exclusively in HO scale, although a couple of his articles dealt with rolling stock projects in HOn2-1/2. But, there was one project, which appeared in the October to December 1968 issues of Railroad Model Craftsman, where he worked in a very different size: The Enskale and Hoentee. It was a small, 30 inch square, layout that cleverly integrated N, TT and HOn2-1/2 models.

You may wonder why I built such a small pike in the first place, when the bigger they come the harder you fall for them. And frankly it was because suddenly smitten by this petite little N scale, and then too I wanted to see if my old love affair with HO might be rekindled to include N in a bigamous union.
[E.L. Moore on why he incorporated N and HOn2-1/2 in a single layout]

If one looks closely, the layout is basically an N-gauge layout where the landscape is sized to allow HOn2-1/2 rolling stock to run. N and HOn2-1/2 both run on N-gauge track, so no problem fulfilling H. G. Wells’ basic requirement for rolling stock that everything is ok as long as it all can run on the same gauge track!
[The unused station from Part 3 of the RMC article on the construction of The Enskale and Hoentee that appeared in the Dec '68 issue.]
The odd thing is why was TT included? Mr. Moore makes little mention of TT in the series other than stating that he had three TT scale buildings on hand - a rather large and ornate station, a freight station and a water tank - that he had scratchbuilt well before starting this project. TT rolling stock won’t run on N-gauge track, although narrow gauge TTn3 will. But, TT is roughly halfway between HO and N in size, so the terrain could be used with TT if the reader decided to build pure a TT layout back then. I don’t know if TTn3 was around in ’68, but if it was, The Enskale and Hoentee could accommodate.
[Elevations for the unused station from part 3 of the RMC article of the construction of The Enskale and Hoentee that appeared in the Dec '68 issue.]
The TT scale station seems to have been included on the layout quite by accident, so maybe the TT thing was just a way to use buildings that were on hand that looked ok in the N scale world. Mr. Moore stated he built an N scale depot for the layout, but it looked too small in comparison to the other N scale buildings he had made; however, the TT station looked just right, so the little N scale depot was abandoned.

The N scale depot is only 15’ x 25’, built of 1/32” scribed sheathing, .025” spacing, which was then cemented to 1/32” balsa for extra thickness. Actually it is so small it is dwarfed by other buildings and so was not used. A simple thing to build and requiring but a couple of days.
[E. L. Moore on how to build what is essentially a simplified Grizzly Flats like depot for the The Enskale and Hoentee]

Although, that discarded N scale depot looked very familiar. It has the same overall dimensions and shape as his HO scale version of the Grizzly Flats depot [1] that E. L. Moore built in the March ’62 issue of Model Trains, although the roof and trimming were highly simplified in his N scale iteration. This got me wondering if I could build an N-scale version of the Grizzly Flats depot from that old Model Trains article. And although the Grizzly Flats depot didn’t appear on E. L. Moore’s Elizabeth Valley Railroad, adding one to an N-scale version would seem to fit into the spirit of his layouts.

E.L. Moore used balsa as the basis of both the HO scale Grizzly Flats model and its N-scale little brother. Given the complexity of the Grizzly Flats build, I didn’t think I could build an N-scale version in balsa, and decided to use styrene instead as I thought that would allow me to cut the components with more precision. It’s not a Moorian choice [2], but one that I thought would make the project more viable for me. And, it turned out that as I proceeded, I had to make changes to accommodate my skills in order to allow me to make progress and see the project though to the end. It took much longer than Mr. Moore’s "couple of days" for the N scale version, and even longer than his "a week is about right" for the HO one. I haven’t scratchbuilt an N-scale building before, and it retrospect it seems a little too difficult for a starter project in either HO or N. But, with caveats in hand, here goes.
The project got started by cutting wall substrate from 0.020 in. styrene for all walls except the front, which was built up from two layers of 0.010 in. sheet. This was so a depression could be created for inserting the bay window.

After that stage I posted a few instalments of the build as I made progress. I won't repeat them, but if you're interested you can find them here,
and here.
Once the build got to this point with the walls all glued up and standing, I moved on to making the windows.
The window material came from a box of Christmas chocolates.
I used E. L. Moore's method of drawing the window frames on paper, taping the clear plastic sheeting over them, and then drawing the frames on the sheets with a paint filled ruling pen. I used the same technique when I built the handcar shed and Vicki's Veggies.
I used the Poly Scale blue trim paint to line the window frames. I must admit that I had to go back and do some extra lining because I messed up the dimensions of the windows a bit. In the end, it worked out, but was a bit of a pain to redo the job after the windows were cut out.
Here they are cut from the sheet and ready to be trimmed for fitting into the window openings.
The bay window -with its 3 walls - was drawn out as a single piece of clear plastic that was scored so it could be folded into the bay shape.
Three individual bay walls were cut from 0.010 inch styrene and painted with the light blue mix. The idea is to glue these over the three folded clear windows to build up the bay.
After lining the window frames with the ruling pen, the bay walls were glued to the window unit with Krystal Klear.
The bay window was bent into shape and used to size the floor.
Before gluing the bay window unit into the building a shelf and ceiling were cut from 0.010 inch styrene and glued into position.
Here's the bay after it was glued in place and the trim strips were added. One thing I should note is that Mr. Moore makes no mention of doors, although the actual station appeared to have them. I also left them off. A small transom window was added at the top of each door opening. These windows were made using the same methods as the other windows.
Once the bay window was done I started on the roof. The basic panels that make up the primary roof structure were measured from the article's plans and cut from 0.020 inch styrene.
Three triangular gussets are used to strengthen the roof. Mr. Moore designed the roof to be removable, hence the gussets. At this point in the project, I thought I'd do the same, but later I abandoned that idea and glued the roof in place for strength.
A piece was then glued into the triangular cut-out. Some sanding and filing was needed to smooth out the fit.
Next was to cut a hole in the roof for the dormer over the bay window.
I didn't use the dormer templates provided in the article to make these as my roof opening was a little larger because I erroneously made the bay window unit taller than the article showed. I had to dust off my high school trig to layout these pieces. I won't subject that to anyone now, but I'm thinking about a future post on how to layout dormers of any size.
It fit well once it was glued in place and a triangular piece was added.
Here's the almost finished roof. During test fitting it was easy to see that the bay window didn't mesh into the roof structure properly, so I added a fascia to the front of the dormer as a view blocker.
You can see the blue fascia in this view. I painted the outer surface of the roof flat black before gluing on shingles to make the structure a little opaque.
But, the inner surface was painted flat white and some pencil lines were drawn on to represent boards.
In the May 1954 issue of Model Trains, Bill McClanahan wrote an article called How to Raise the Roof which summarized the then typical techniques for modelling shingles. In E. L. Moore's article he used the old method of scribing balsa with a sharp, hard pencil, and he appears to have used it on the N-scale version slotted for the The Enskale and Hoentee. I wasn't keen on it, so I decided to use the John Allen technique outlined in Mr. McClanahan's article. Basically, I started by getting a piece of brown wrapping  paper (note that Mr. Allen used brown construction paper for his HO shingles), taping it to a cutting mat and painting it with loose washes of blue and brown paint. I didn't use white paper because when it's cut to represent shingles, there would be unsightly white edges.
I cut out a collection of 4mm strips and proceeded to slice into them shingles in roughly 1 to 2mm sections. Rather large for N-scale, but they looked ok in the end. I'll need do better on the next project.
The strips were then glued on the roof - using white glue - in staggered pattern.
Here's what it looks like with all the shingles glued on. I should have added individual shingles where the dormer joins the main roof as I did with the roof corners, but I didn't think I could do a good job, and the intersection of the two roofs looked sharp, so I left it as is. Although, I was happy with the colour variation in the roof.
The decorative roof ridge trim was cut from 0.010 inch styrene. The short piece shown above goes on the dormer. Mr. Moore's model also has decorative posts at the ends of the trim carved from round toothpicks. I thought these would be a little too difficult for me to make in N-scale, so I left them off.
There are a number of exterior roof supports mounted under the eaves that run along the front and back walls. I made each from two pieces of 0.020 inch styrene. The first piece is a V-shape - shown above - were the long arm attaches to the wall, and the short arm attaches to the eaves. The actual Grizzly Flats station has rather ornate roof supports, and Mr. Moore noted they were too elaborate for him to make in HO, so he built some simplified curved ones instead. I simplified even further and made the supports with straight struts. Photo-etch or laser cutting methods would certainly allow for more precise modelling of the prototype's supports - the roof ridge trim too.
A diagonal strut is then glued across the opening of each V. The untrimmed supports are shown above.
The end walls also have roof supports, but they have a different shape. The 'V-portion' isn't really a V, but an L since the arms are perpendicular to each other. However, they're made in the same way as the main wall roof supports. The picture above shows them after they have been glued together, trimmed and sanded to the final shape, and are ready for painting. The triangle near the upper left is the far end wall decorative insert. It was cut from 0.010 inch styrene.

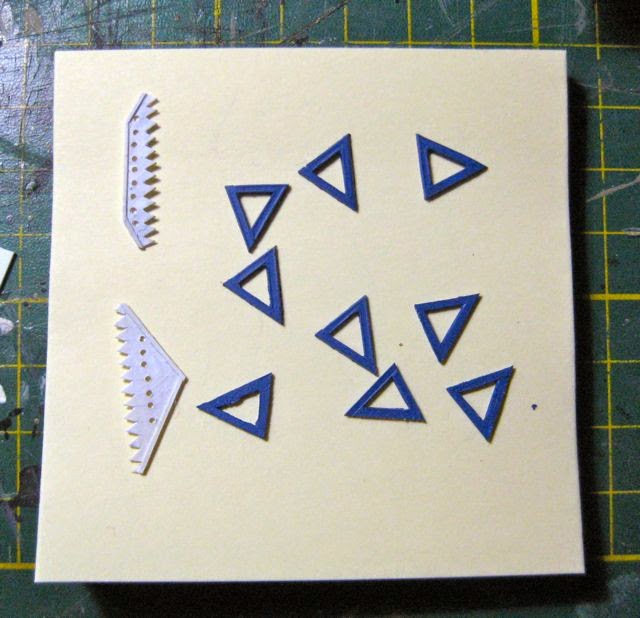

Here are some painted roof supports along with the decorative end-wall inserts, which are both made from 0.010 inch styrene. The white triangular insert goes under the eaves in the roof end that doesn't have the drooped, triangular cut-out. Reading Mr. Moore's article closely I wonder if he detailed this wall or left it plain as he said he did with the back wall. No photos or plans are shown, and the text is skimpy, so I wonder if for expediency of article production, it was left more-or-less unfinished. I had to go to the Train time at Grizzly Flats article in the October 1950 issue of Trains to see what it looked like.
Believe it or not, other than adding signs, some touch-up painting, and gluing those pieces on, it's done!
Here's the station side-by-side with the E. L. Moore HO-scale handcar shed that I built way back in the second instalment in this series. The shed seems huge.
And, yes I did finish the 'back' of the station,
as well as the 'front'.
